applied 6063 T5 aviation aluminum blending by machine.
The dammar of the light can be customized. It’s more flexible for special projects.
Good heat dissipation: A whole piece of PCB and the aluminum housing provide good heat dissipation.
Energy and cost saving: round light switch can save 85%power compared with ordinary light.
Eco-friendly: round light is no ultraviolet and infrared radiation, no electromagnetic.
Soft light: Our LED apply the uniform distribution which ensures 100% no dark area.
Eye Protect: round light switch is no strobe flash, high color rendering, and no felling tried even after long-term using eye.
Professional Customization: freely choose the specification of round light what you like.
Ultra-bright: led back-lit panel light switch is without a light guide plate, light travels directly through the diffuser
plate, reducing the loss of light. The maximum light output can reach 110-130lm/w.
Long lifespan: our round light has 50000 hrs long life, 5 times longer than fluorescent, reduce your replacement frequency.

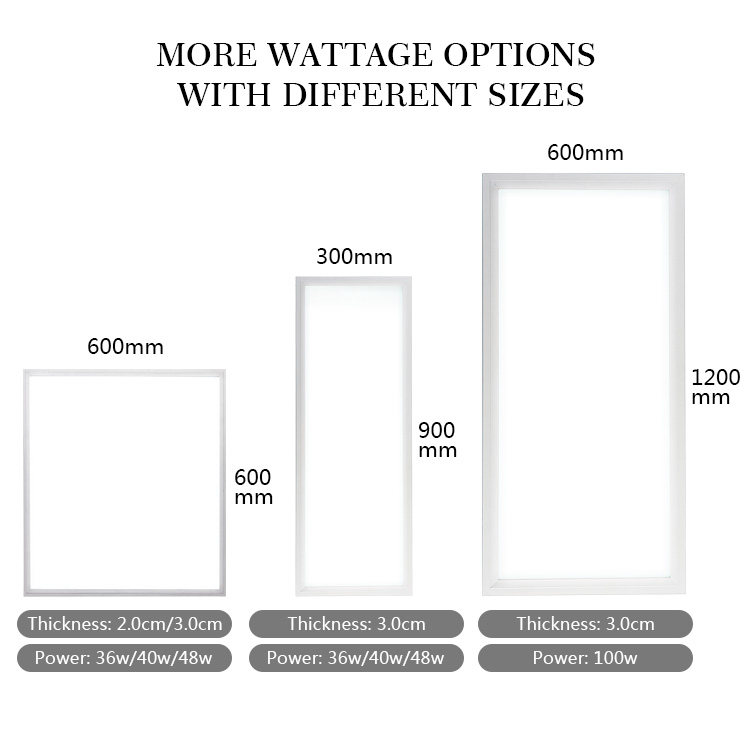

Size: 595*595*32mm
ColorTemperature: 2500K-6500K
Voltage：AC 100~240V :
Frequency: 50Hz/60Hz
Luminous Flux：100lm/w:
Power: 36w 48w 60w
IP Rate: IP40
PF(Power Factor): AC 230V ≥0.9
Efficiency : 88% (Typ.)
LED Type: 3030 SMD + Lens
LED Quantity: 48PCS
Beam Angle: 120°(Typ.)
Color tolerance: ≤6 SDCM
CRI: ≥82
Certificate: CE、RoHS
Storage Temperature: -20℃~60℃
Material: Aluminum+Steel+PS/PC
Size: 295*1195*32mm
ColorTemperature: 2500K-6500K
Voltage：AC 100~240V :
Frequency: 50Hz/60Hz
Luminous Flux：100lm/w:
Power: 36w 48w
IP Rate: IP40
PF(Power Factor): AC 230V ≥0.9
Efficiency : 88% (Typ.)
LED Type: 3030 SMD + Lens
LED Quantity: 48PCS
Beam Angle: 120°(Typ.)
Color tolerance: ≤6 SDCM
CRI: ≥82
Certificate: CE、RoHS
Storage Temperature: -20℃~60℃
Material: Aluminum+Steel+PS/PC
Size: 295*1195*32mm
ColorTemperature: 2500K-6500K
Voltage：AC 100~240V :
Frequency: 50Hz/60Hz
Luminous Flux：100lm/w:
Power: 60W
IP Rate: IP40
PF(Power Factor): AC 230V ≥0.9
Efficiency : 88% (Typ.)
LED Type: 3030 SMD + Lens
Beam Angle: 120°(Typ.)
CRI: ≥82
Certificate: CE、RoHS
Storage Temperature: -20℃~60℃
Material: Aluminum+Steel+PS/PC
